HDMI Video Fiber Optic Extender With BIDI RS422 Data
Introduction to Video Fiber Converter
Optical video transmitter and receiver are designed to extend the coaxial limit of 500 meters and get CCTV signals connected to 80km max on optical fiber cable. Also referred to as fiber converters, media converters, optical video converters, Optical video transmitter and receiver are a pair of CCTV transmission devices that transmit and receive high fidelity CCTV signals of video, audio, data, telephone, contact closure, Ethernet, etc. with advanced optical transmission technology which enables lossless transmission with minimum disturbance. And the plug-and-play design enables simple installation.

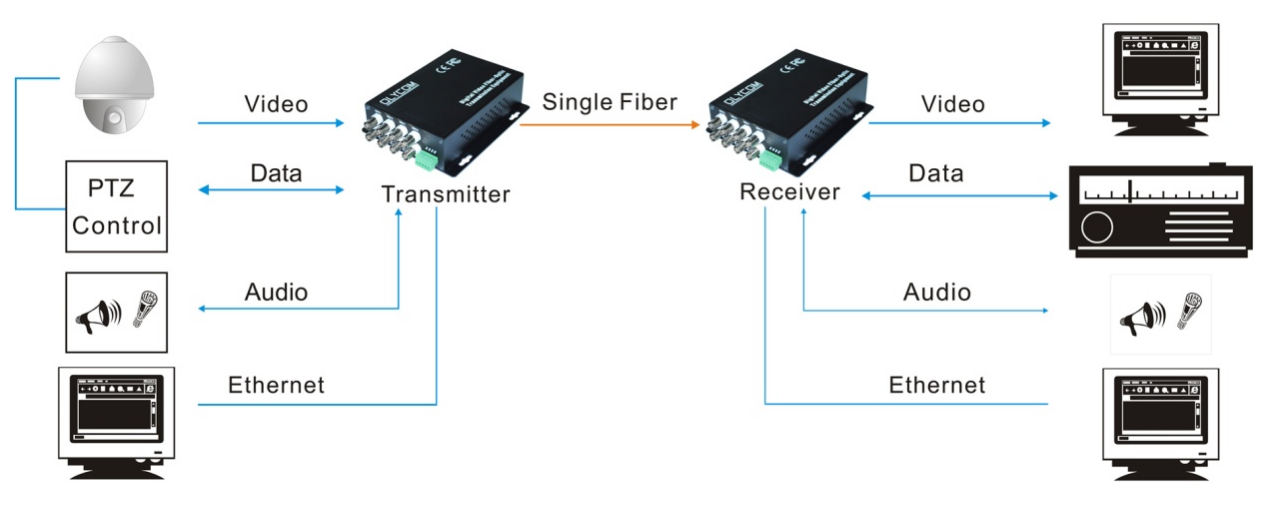

Olycom OM600 series of optical transmitter and receiver offer a wide selection of configurations, ranging from a simple setup with a single channel of a specific type of signal to sophisticated solutions with many channels of different signals (video, audio, data, telephone, alarm, and Ethernet). With the application of Wavelength Division Multiplexing (WDM) technology, all the signals are transmitted and received over a single optical fiber cable. The flexible configurations are open to customization and ODM to cater various needs.
Same with Ethernet media converters, optical video transmitter and receiver’s flexibility can be optimized with the application of SFP transceiver.
Optical video transmitter and receiver types range from small standalone devices to high port-density chassis systems that offer advanced features for centralized management.
And fiber optic transmission, which is inherently secure and immune to outside interference, is favored in government, military, and medical environments.
Specification of HDMI Optical Extender
| Optical |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic Fiber | Single mode (9/125um) 20Km to 80Km Multimode (50/125um) 1Km, ( 62.5/125um) 500m |
| Receiving Sensitivity | -30dBm |
| Interface | FC/ST/SC |
| Video |
| Bandwidth | 8MHZ |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Data |
| Data Protocol | RS232, RS422, RS485, Manchester, BIPHASE data |
| Bandwidth | 0~300kbps |
| Error rate | 10-9 |
| Interface | Phoenix terminal |
| Chassis and Cards |
| Chassis Slots Quantity | 18 slots |
| Compatibility(with cards) | 1~4ch cards(18pcs); 8ch cards(9pcs) |
| Flexibility | Supports mixed installation of different configurations |
| Cards | In 4ch PCB(153x100x10mm) or 8ch PCB size (153x100x25mm) configurations which require larger size can’t be used with this system |
| Electrical. Environmental. Mechanical |
| Operating Voltage | Standalone:220VAC to 5V/12VDC Rack: dual 220V/-48V AC, card: powered by chassis |
| Operating Temperature | -35℃～+75℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 0~95% non-condensing |
| Dimension And Weight | Standalone and card: depends on different configurations, Chassis: 19”3U |
Application
- Police and safe city monitoring system
- Express way security protection and toll station system
- City traffic monitoring system
- Building and campus monitoring system
- Industrial monitoring (airport, chemical plant, railway, etc.)
- Military monitoring (frontier defense, national defense)
- Electronic power oil field, TV station program broadcasting
- Gymnasium (live video and audio transmission)
Ordering Options
| OM610-1V↑1D↓1P1E WT/R | 1ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone. |
| OM610-1V↑2D↓2A↑1E WT/R | 1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet |
| OM610-1V↑2D↓2A↑2K↑WT/R | 1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch Contact Closure Tx |
| OM610-2P1EWT/R | 2ch Telephone + 1ch 10/100M Ethernet |
| OM610-2V↑1D↓1P1E WT/R | 2ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone. |
| OM610-2V↑2D↓2A↑1E WT/R | 2ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet |
| OM610-4EWT/R | 4ch 10/100M Ethernet |
| OM610-4P2D↓WT/R | 4ch Telephone+ 2ch RS485 data Rx |
| OM610-4V↑1D↓4E WT/R | 4ch video Tx + 1ch RS485 data Rx + 4ch 10/100M Ethernet |
| OM610-4V↑1D↓4PWT/R | 4ch video Tx + 1ch RS485 data Rx + 4ch Telephone |
| OM610-4V↑12D↓WT/R | 4ch video Tx + 12ch RS485 data Rx |
| OM610-2D↓8PWT/R | 2ch RS485 data Rx + 8ch Telephone |
| OM610-20D↓WT/R | 20ch RS485 data Rx |
| OM610-1V↑↓1D↑↓1A↑↓1K↑↓WT/R | 1ch bi-di video + 1ch bi-di RS485 data + 1ch bi-di audio + 1ch bi-di contact closure |
| OM610-2D↑↓4A↑↓1E WT/R | 4ch bi-di audio + 2ch bi-di RS485 data + 1ch 10/100M Ethernet |
| OM610-1V↑1D↑↓3A↑2K↑↓WT/R | 1ch video Tx + 2ch bi-di RS485 data + 3ch audio Tx + 1ch bi-di contact closure |
| OM610-4V↑2D↓2A↑1E 1P2K↑WT/R | 4ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet + 1ch Telephone + 2ch Contact Closure Tx |
Olycom OM610 series of optical transmitter and receiver offer a wide selection of configurations, ranging from a simple setup with a single channel of a specific type of signal to sophisticated solutions with many channels of different signals (video, audio, data, telephone, alarm, and Ethernet). The flexible configurations are open to customization and ODM to cater various needs.
Please contact us for more configurations / customization / OEM / ODM.
|
|

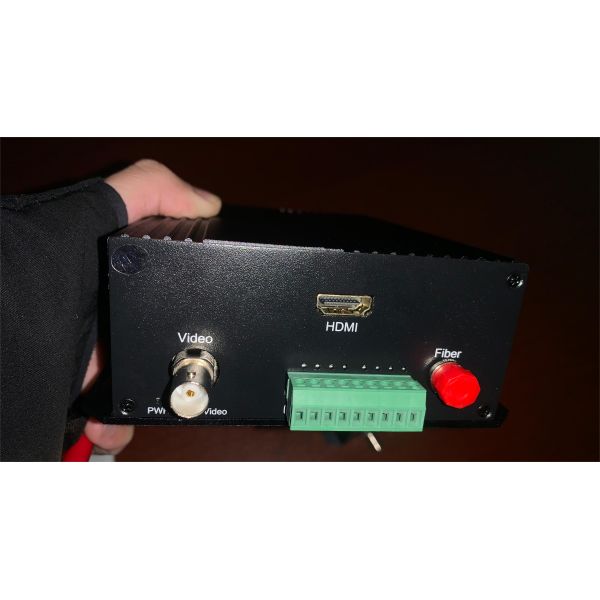

HDMI Video Fiber Converter 1080P Bidi RS422 Singlemode Optic Extender DC12V CE Images
|
